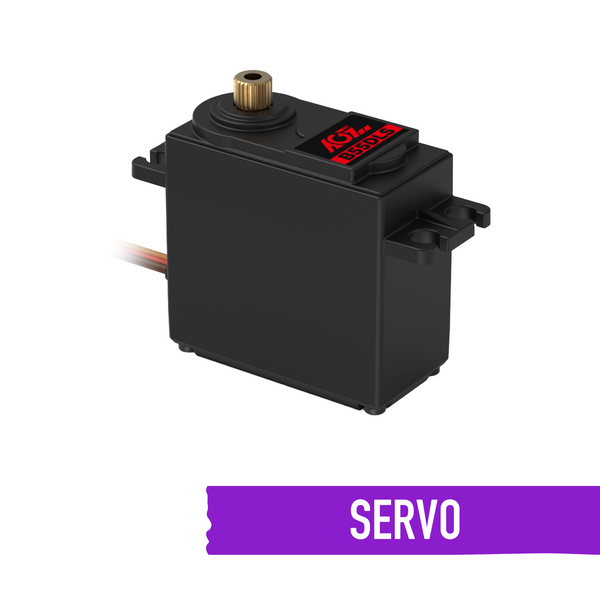

B55DLS High Torque Digital Standard Servo

$22.00


More payment options

Compatible with the Camp Witch Doctor Robot Kits. Includes plastic servo horn.

FH-5515MG - 15kg Standard Analog Servo

Features:

  • High Performance Digital Servo
  • High Precision Metal Gears
  • High Quality Brushed Motor
  • Durable Dual Ball Bearings

Specifications:

  • Operating Voltage: 4.8-7.2V
  • Operating speed: 0.24sec/60° @ 4.8V
  • Operating speed: 0.22ec/60° @ 6.0V
  • Stall Torque: 10.0 kg-cm (139 oz-in) @ 4.8V
  • Stall Torque: 12 kg-cm (166 oz-in) @ 6.0V
  • Gear: Copper material
  • Motor: DC
  • Size: 40*20*39.85mm (1.57 x 0.78 x 1.57 in)
  • Weight: 62g
  • Connector Wire: JR 300 mm / 22AWG
